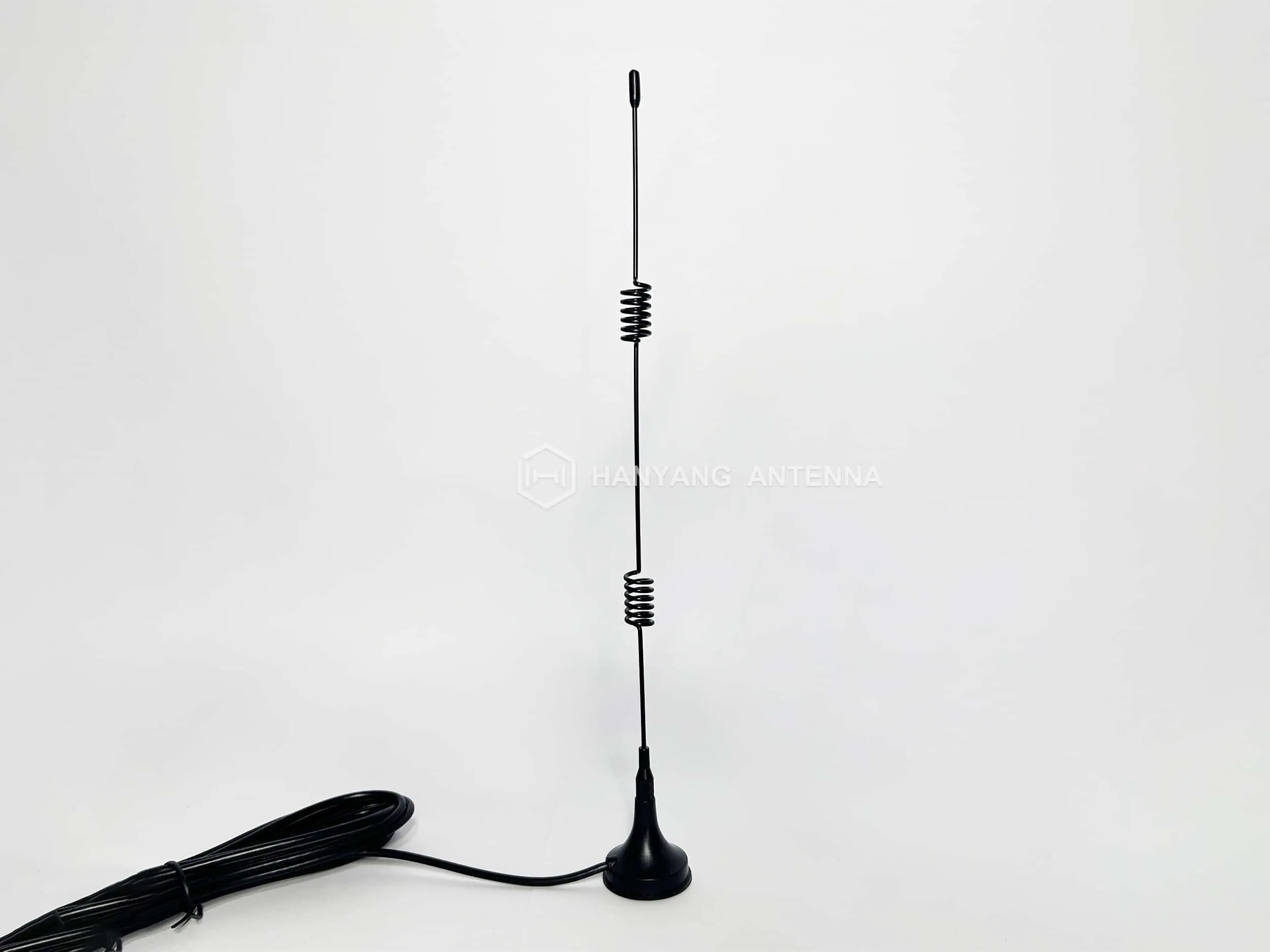

External 4G Antenna indoor,Magnetic mount,820-960MHz/1710-2700MHz,SMA-JW,T215B

4G外置天线

IMG_8427-1
IMG_8427-1

External 4G Antenna indoor,Magnetic mount,820-960MHz/1710-2700MHz,SMA-JW,T215B

频率范围:820-960MHz/1710-2700MHz
尺寸:∅ 116*22*5.5 mm
驻波比:≦2.0
连接器型号:SMA-JW Fakra/MCX/MMCX(Customizable)
平均增益:≧-2.6dBi
外壳材料:ABS
输入阻抗:50 Ω
外壳颜色:Black
极化方式:线极化
电缆型号/高度:RG174/3000 mm
辐射方向:全向
工作温度:-40℃- +85℃

Antenna Passive Parameters

VSWR &Return Loss


Frequency (MHz)8209601710217023002690
Return Loss-10.33-12.9-17.2-21.48-15.58-14.32
VSWR1.891.591.341.221.391.53

VSWR


VSWR


Return Loss


Return Loss


Gain and Efficiency


Gain and Efficiency


Gain and Efficiency


Frequency (MHz)820890960171019502170230025002690
Efficiency(%)10.2210.2912.618.0517.7918.6712.3310.418.4
Gain(dBi)-4.92-5.24-3.37-1.87-2.69-1.59-3.84-4.38-5.2


Antenna Radiation Pattern


Antenna Radiation Pattern
