VSWR &Return Loss
| Frequency （MHz） | 820 | 960 | 1710 | 2170 | 2300 | 2690 |
| Return Loss | -7.71 | -7.57 | -26.19 | -17.87 | -21.24 | -12.94 |
| VSWR | 2.37 | 2.45 | 1.12 | 1.31 | 1.2 | 1.58 |

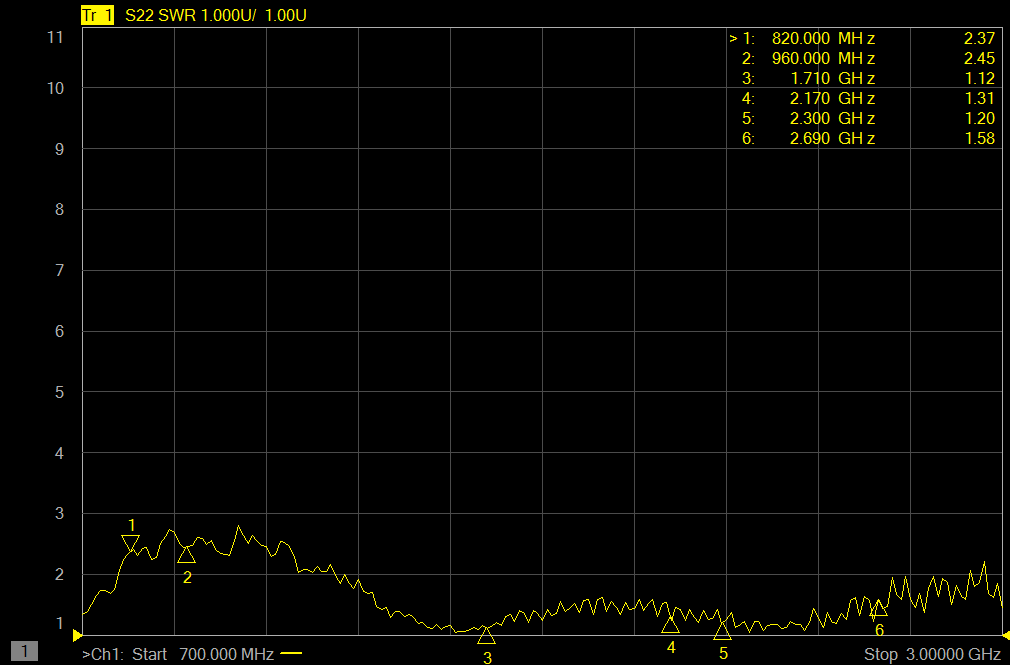

VSWR

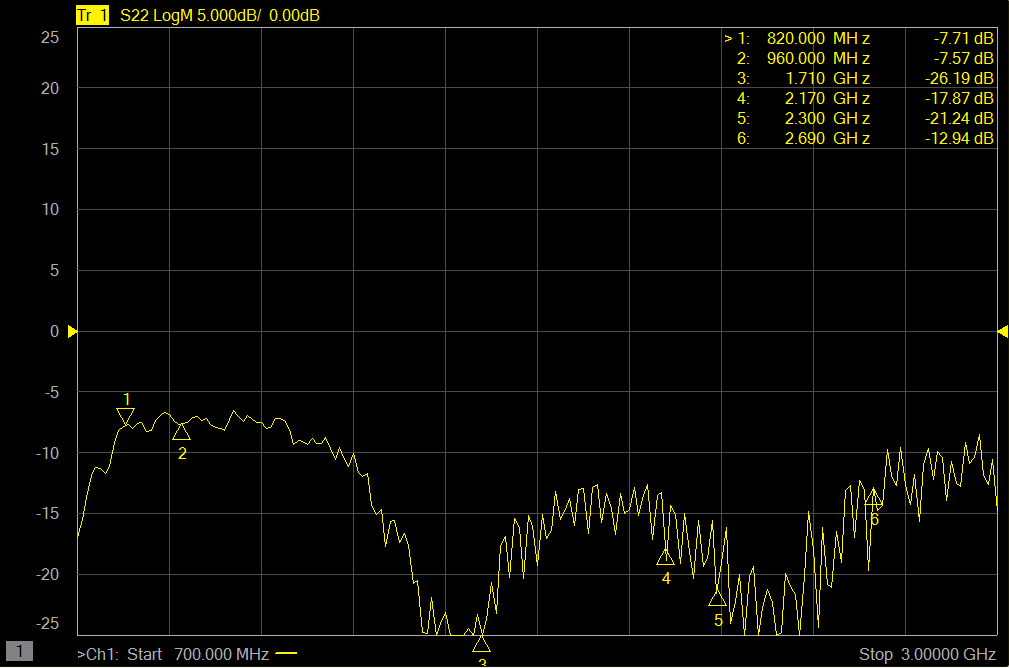

Return Loss
| Frequency（MHz） | 820 | 880 | 960 | 1710 | 1950 | 2170 | 2300 | 2500 | 2690 |
| Efficiency(% ) | 61.97 | 60.08 | 59.33 | 63.79 | 62.73 | 64.47 | 65.73 | 62.26 | 56.89 |
| Gain .dBi | 1.66 | 1.36 | 0.77 | 3.37 | 2.65 | 3.03 | 1.52 | 1.85 | 1.71 |
