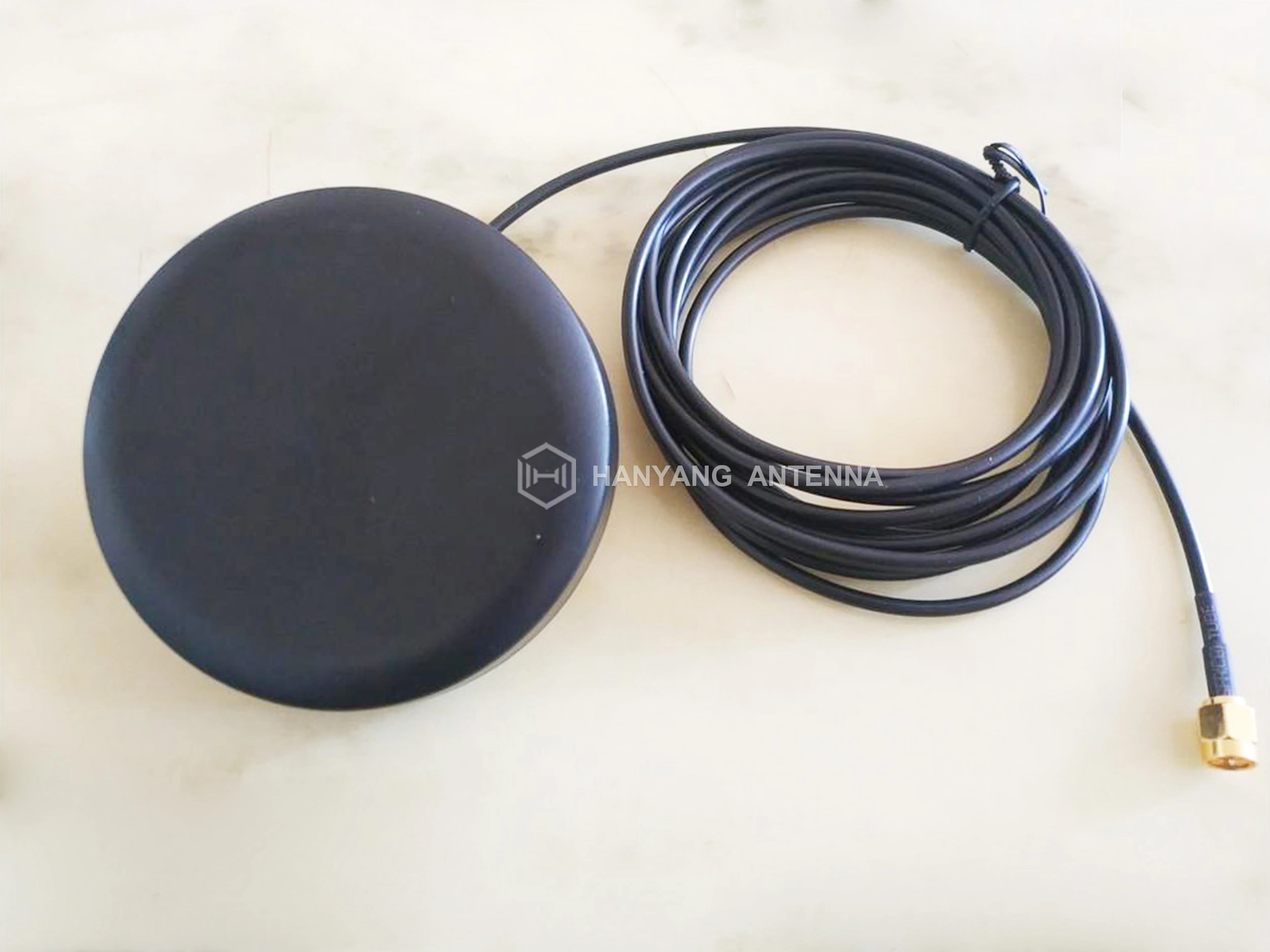

频率范围：4G: 820-2690MHz，BT: 2400-2500 MHz，GNSS: 1555MHz~1590MHz
尺寸：∅81*15.5mm
驻波比：4G≦2.0dB，BT≦2.0dB，GNSS≦1.5dB
接头：Fakra 4 Pin SMA/MCX/MMCX（Customizable）
阻抗：50 Ω
外壳颜色：Black
极化方式：线极化/圆极化
电缆型号/高度：RG174-2M
辐射方向：4G/WIFI全向
GNSS定向
工作温度：-40℃- +85℃
| Frequency（MHz） | 820 | 960 | 1710 | 2170 | 2300 | 2690 |
| Return loss | -15.3 | -10.33 | -10.23 | -24.08 | -29.44 | -12.37 |
| VSWR((dBi) | 1.43 | 1.88 | 1.89 | 1.14 | 1.08 | 1.64 |
Return Loss
VSWR
| Frequency（MHz） | 820 | 890 | 960 | 1710 | 1950 | 2170 | 2300 | 2500 | 2690 |
| Efficiency [%] | 31.13 | 31.03 | 28.49 | 29.55 | 38.82 | 39.09 | 37.05 | 32.81 | 30.87 |
| Gain [dBi] | 1.18 | 0.39 | -0.86 | 1.57 | 1.58 | 2.48 | 1.06 | -0.09 | -1.84 |
| Frequency（MHz） | 2400 | 2500 |
| Return Loss | -11.79 | -12.71 |
| VSWR | 1.7 | 1.6 |
Return Loss
VSWR
| Frequency（MHz） | 2400 | 2450 | 2500 |
| Efficiency [%] | 27.05 | 33.12 | 20.93 |
| Gain [dBi] | -0.45 | 0.27 | -1.48 |
| ReceiveFrequency Range | 1575.42±2.5MHz 1561.098±2.5MHz |
| Passive Gain | 2.36 dBi 1.78dBic |
| VSWR | ≤ 2.0 |
| Polarization | Right-hand Circular Polarization（RHCP） |
| Gain | 15±2dB |
| Noise Figure | ≤2.0dB |
| Input VSWR | ≤2.0 |
| Working Current | <15mA |
| Input Voltage | DC3～5V |
| Impendance (Ohm) | 50Ω |
| Frequency（MHz） | 1555 | 1561 | 1575 | 1590 |
| Return Loss | -4.45 | -7.05 | -14.23 | -4.07 |
| Gain | 3.99 | 2.53 | 1.39 | 4.09 |
VSWR
Return Loss
| Frequency（MHz） | 1555 | 1561 | 1575 | 1590 |
| Efficiency [%] | 35.21 | 46.59 | 49.74 | 31.83 |
| Gain [dBi] | 0.89 | 1.78 | 2.36 | 0.81 |
| FRE（MHz） | 1561 | 1575 |
| VSWR | 1.32 | 1.37 |
| Gain | 17.38 | 16.19 |
Antenna Isolation
| Isolation (dB) | 4G | WIFI | GNSS |
| 4G | / | ＞15 | ＞25 |
| BT | ＞15 | / | ＞25 |
| GNSS | ＞25 | ＞25 | / |
Main Antenna&GNSS
Main Antenna&Wi-Fi
