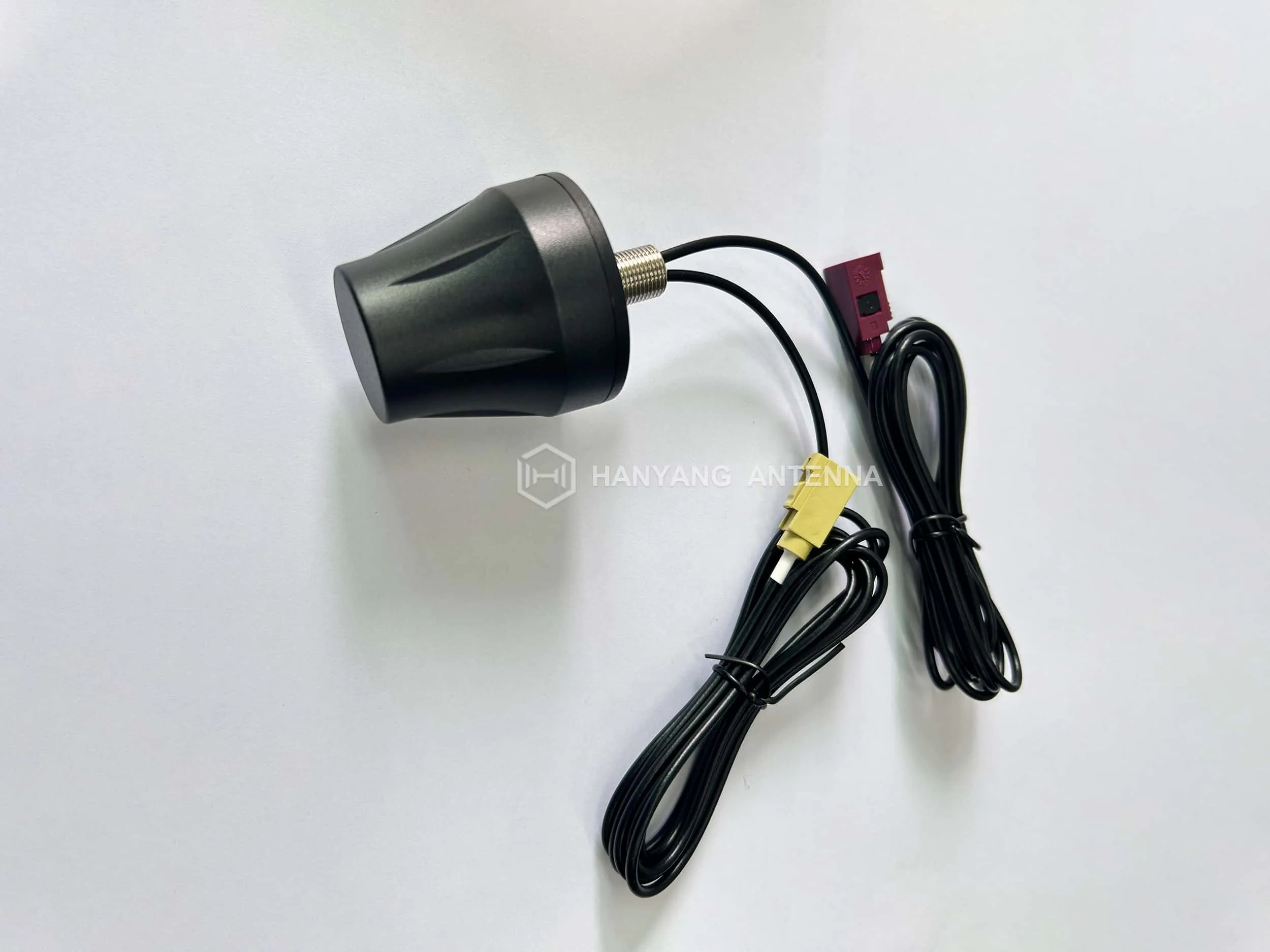

4G+4G/WiFi+4G External Antenna,outdoor,waterproof IP67,Charging Pile,SMA,HY012011A02,HY012011A03

充电桩天线

IMG_8306-1
IMG_8306-1

4G+4G/WiFi+4G External Antenna,outdoor,waterproof IP67,Charging Pile,SMA,HY012011A02,HY012011A03

频率范围:700-2690MHz/1710-2700MHz/2400-2500MHz
尺寸:∅50*48.5 mm
驻波比:≦2.0
连接器型号:SMA -J   Fakra/MCX/MMCX(Customizable)
增益:≧2.0dBi
外壳材料:ABS+PC
阻抗:50 Ω
外壳颜色:Black
极化方式: Liner
电缆型号/高度:RG174-2 m
辐射方向:全向
工作温度:-40℃- +85℃
防水等级:IP67
盐雾测试:48H

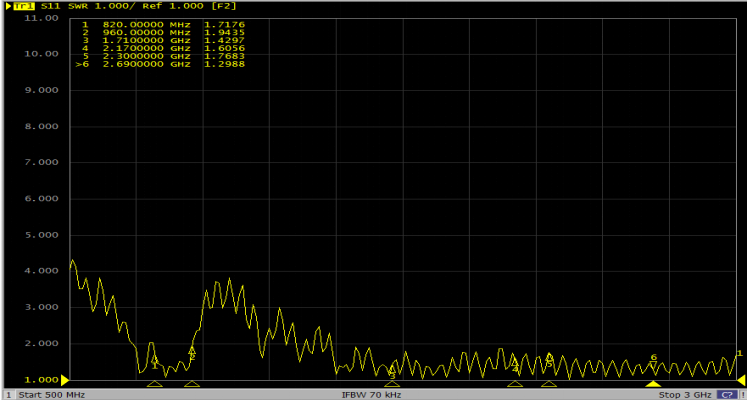

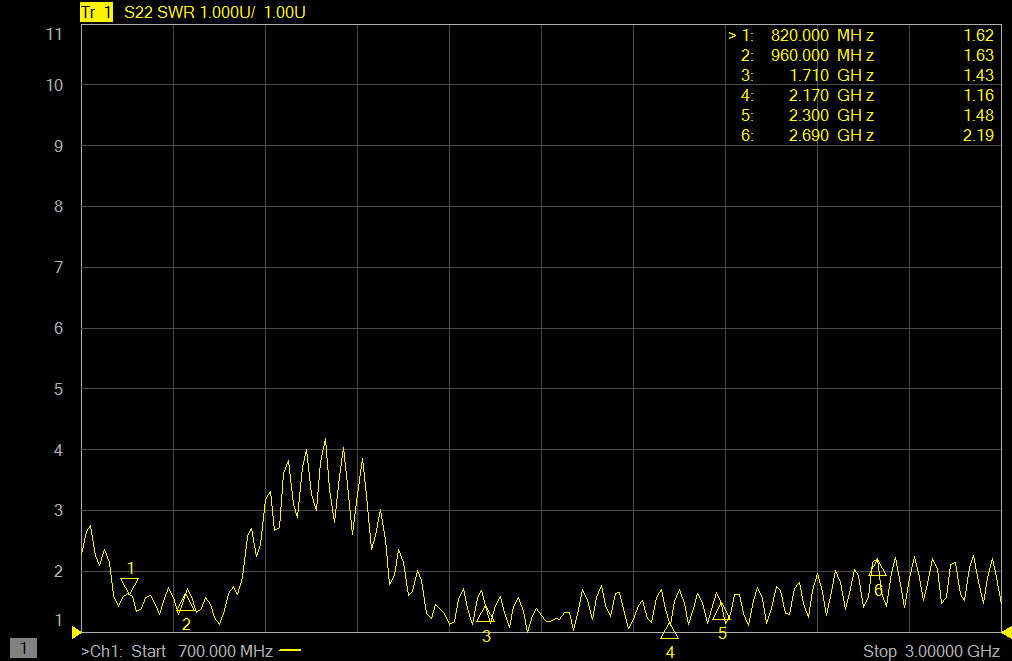

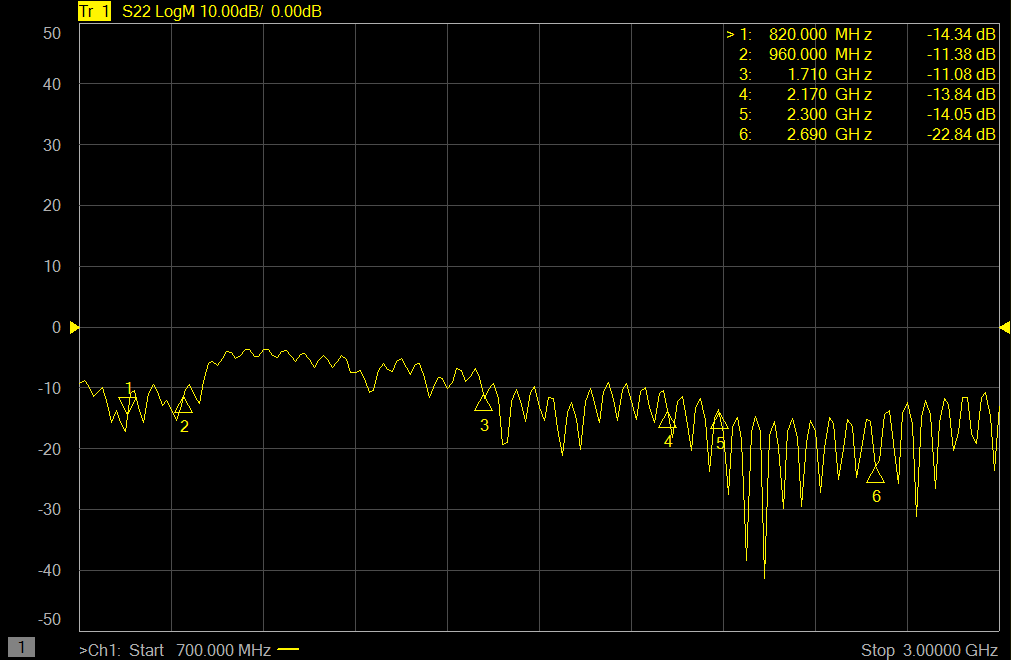

4G-1 AntennaVSWR and Return Loss
Frequency (MHZ)8209601710217023002690
Efficiency_dB-3.77-3.98-6.94-5.72-5.19-4.37
Gain2.851.17-1.15-2.09-0.110.63
Efficiency_Pcent56.9454.9635.2441.8145.2951.53


   VSWR


  VSWR



Return Loss


Return Loss


4G-1 Antenna Radiation Pattern


4G-1 Antenna Radiation Pattern

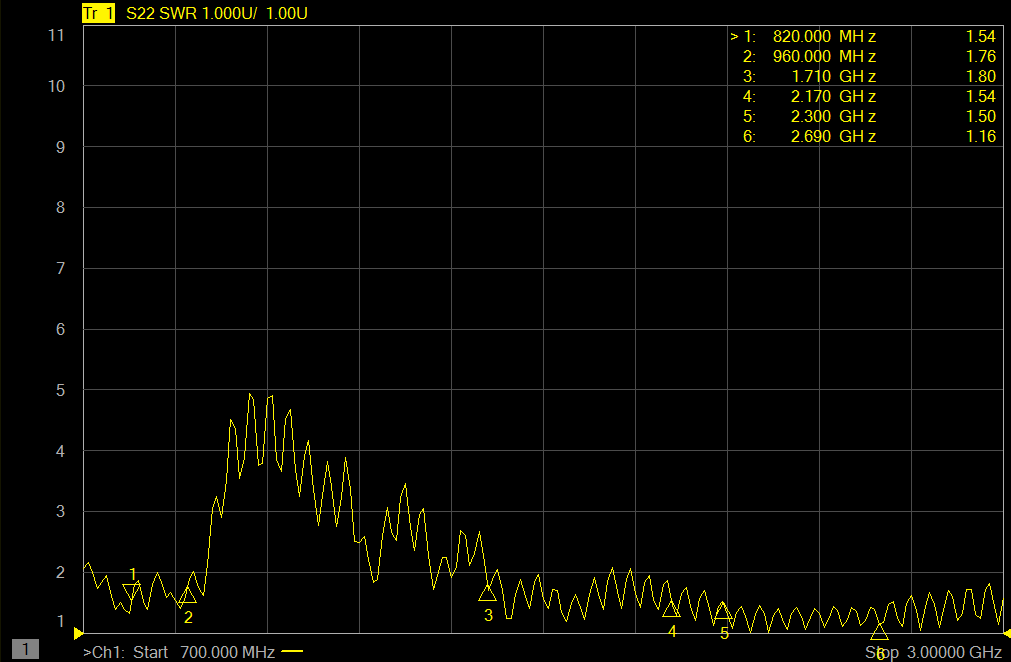

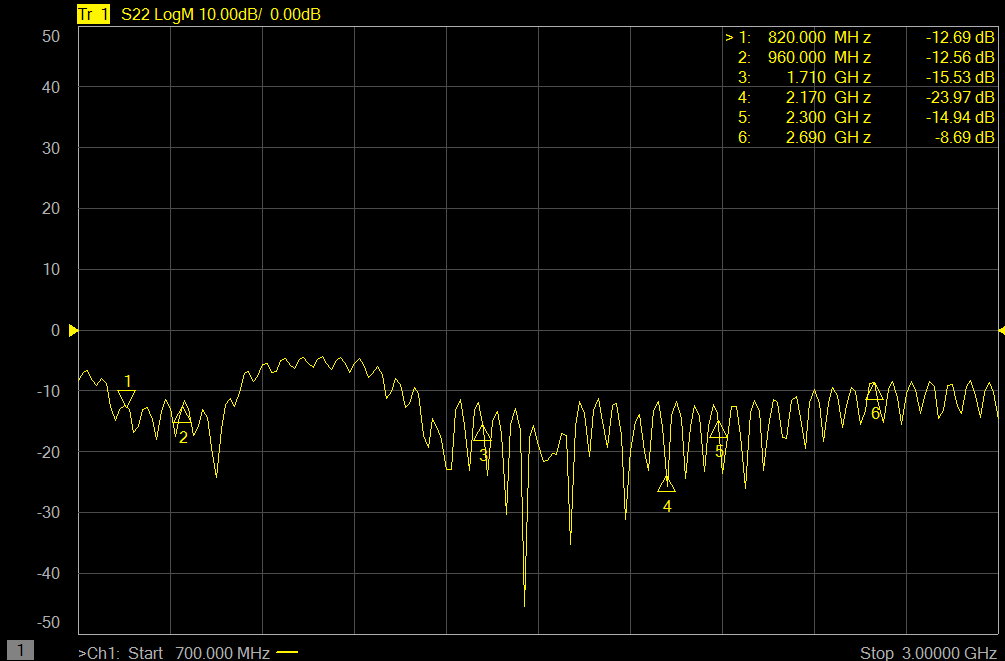

4G-2Antenna VSWR and Return Loss
Frequency (MHZ)8209601710217023002690
Efficiency_dB-5.13-3.5-5.47-5.76-5.27-6.1
Gain-0.751.570.05-0.67-0.2-1.06
Efficiency_Pcent45.6959.6343.441.5745.7239.56


   VSWR



   VSWR


Return Loss


Return Loss



4G-2 Antenna Radiation Pattern


4G-2 Antenna Radiation Pattern

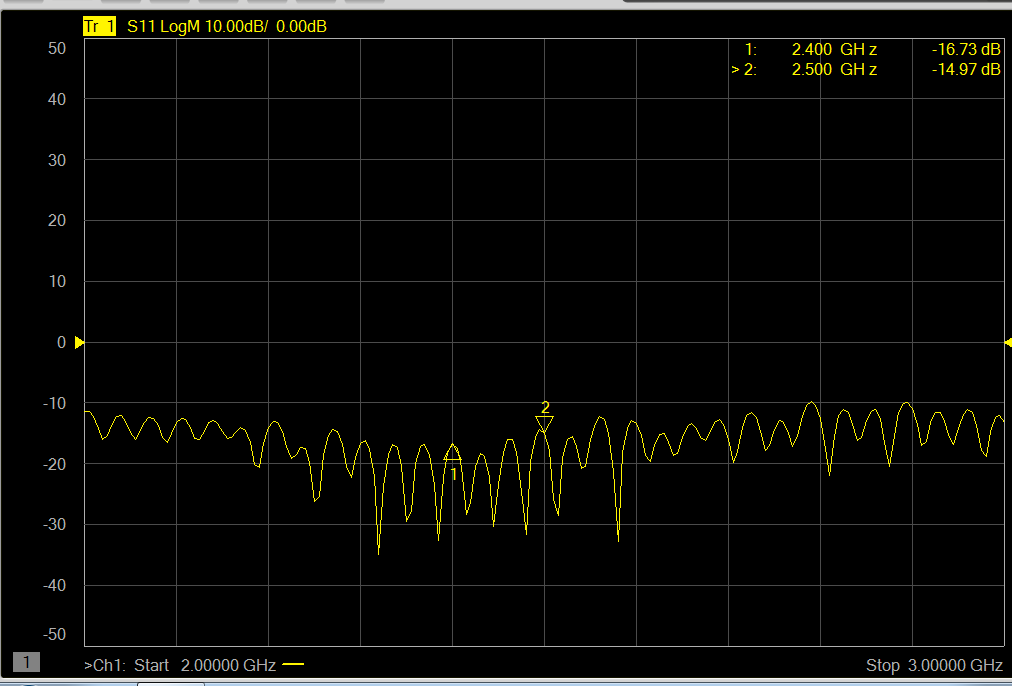

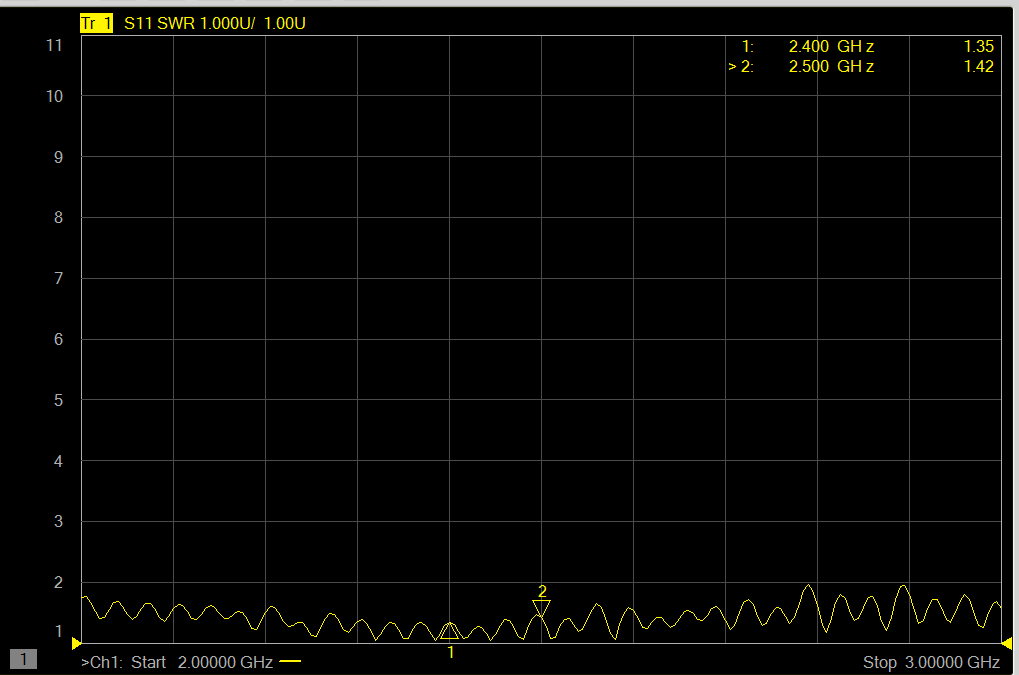

WifiAntenna VSWR and Return Loss
Frequency (MHZ)24002500
Efficiency_dB-5.21-5.52
Gain1.071.28
Efficiency_Pcent45.141.03


   VSWR


   VSWR



Return Loss


Return Loss

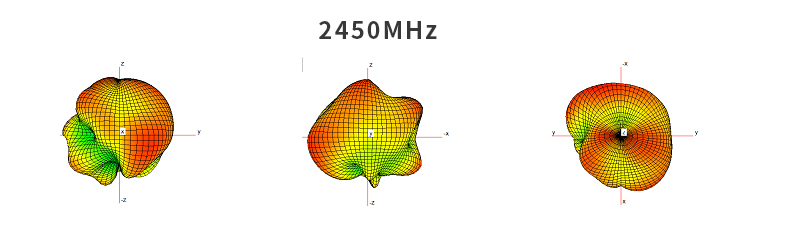

WiFi Antenna Radiation Pattern


WiFi Antenna Radiation Pattern

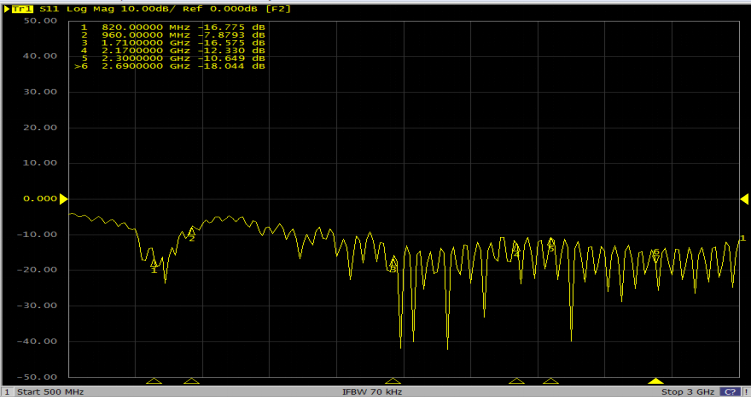

4GAntenna VSWR and Return Loss
Frequency (MHZ)8209601710217023002690
Efficiency_dB-3.27-4.5-5.84-6.13-6.53-5.95
Gain0.931.16-0.79-1.71-1.54-0.28
Efficiency_Pcent62.1250.4841.0639.3637.2540.39


   VSWR


    VSWR


Return Loss


Return Loss

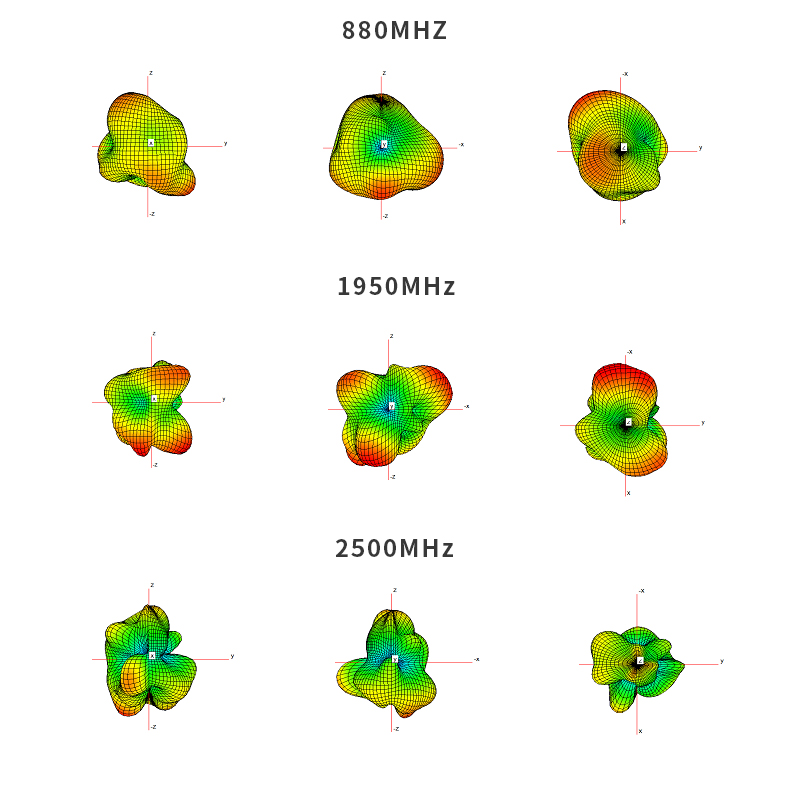

4G Antenna Radiation Pattern


4G Antenna Radiation Pattern
