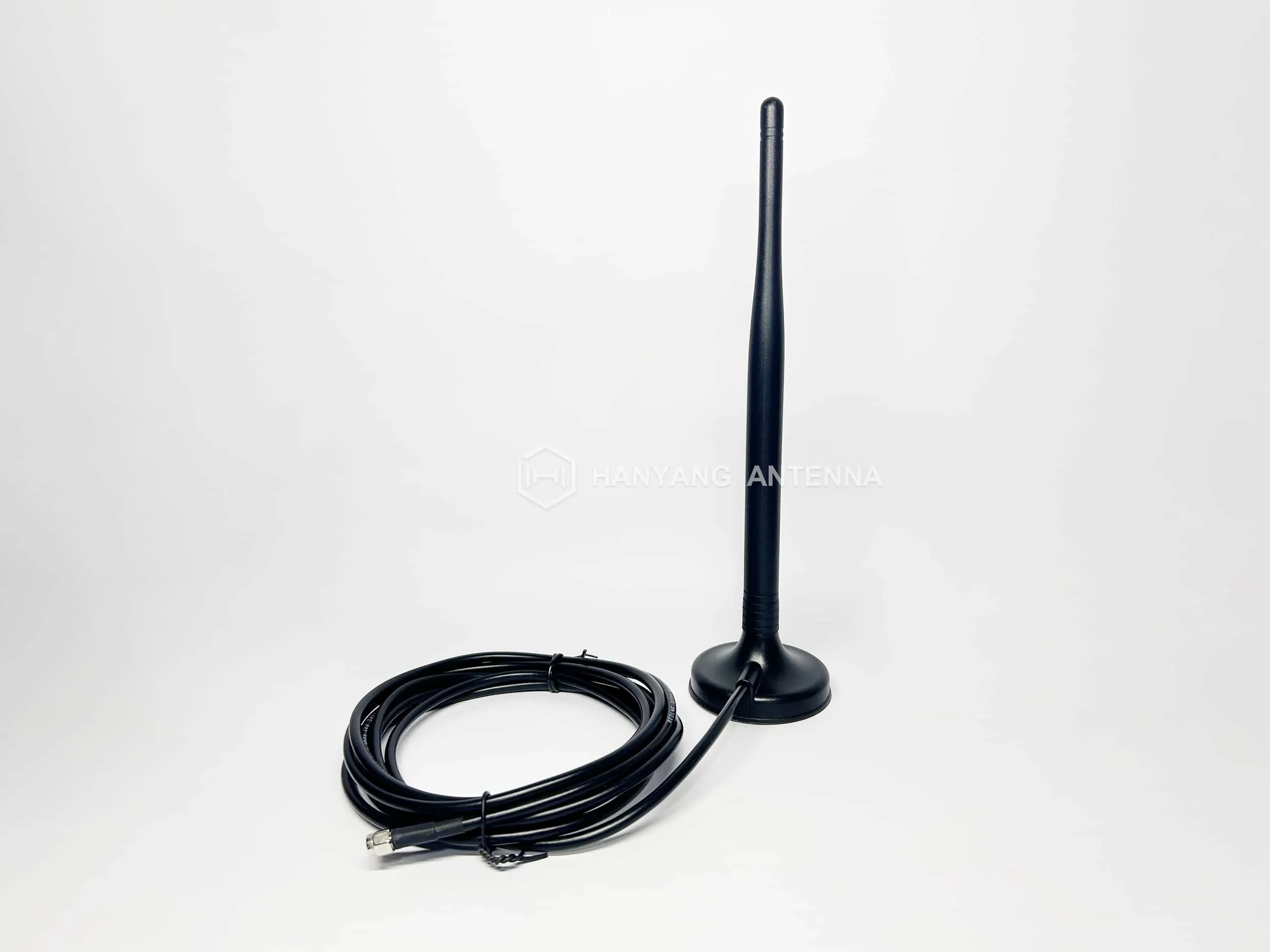

LORA External Antenna indoor,IoT,470-510MHz,IoT,SMA,connector,Customizable,T216E

频率范围:470-510MHz
尺寸:∅ 285*253*67*2000 mm
驻波比:≦2.0
连接器型号:SMA Fakra/MCX/MMCX(Customizable)
平均增益:≧-3.0dBi
外壳材料:ABS
输入阻抗:50 Ω
外壳颜色Black
极化方式:线极化
电缆型号/高度:RG58/2000 mm
辐射方向:全向
工作温度:-40℃- +85℃

Antenna Passive Parameters

VSWR &Return Loss


Frequency (MHz)470510
Return Loss-13.857-13.21
VSWR1.511.53


VSWR


VSWR


Return Loss


Return Loss


Gain and Efficiency


Gain and Efficiency


Gain and Efficiency


Antenna Radiation Pattern


Frequency (MHz)470490510
Efficiency(%)27.332.928.2
Gain(dB)-3.16-2.37-3.17

Antenna Radiation Pattern
