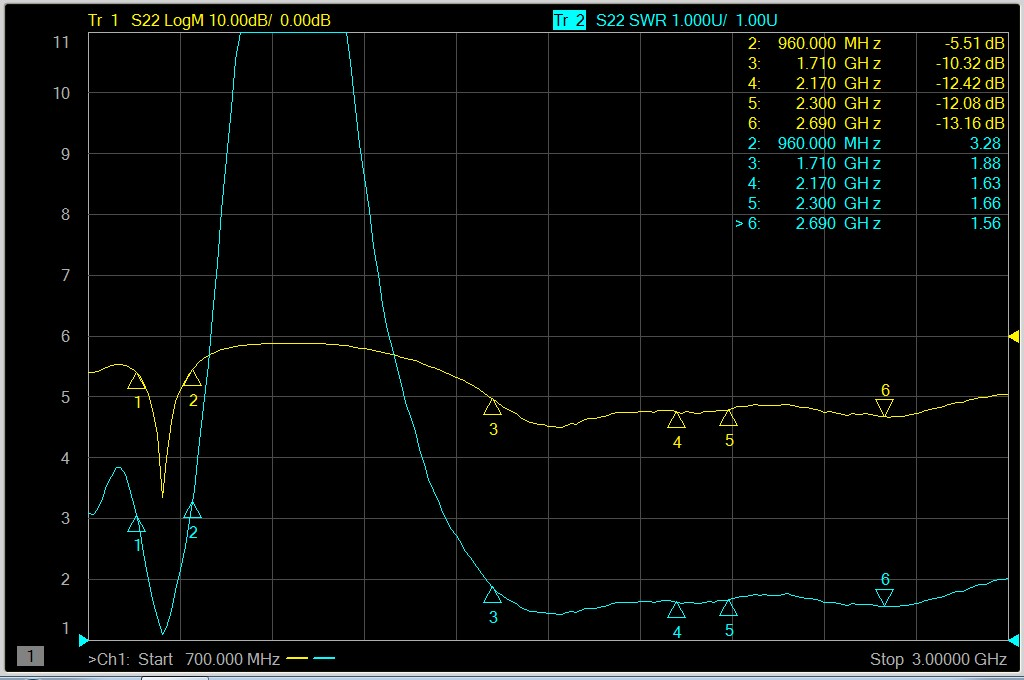

VSWR & Return Loss
| Frequency(MHz) | 820 | 960 | 1710 | 2170 | 2300 | 2690 |
| Efficiency | 3.42 | 3.23 | 2.37 | 1.3 | 1.16 | 1.56 |
| Gain .dBi | -5.25 | -5.67 | -7.82 | -17.58 | -22.66 | -13.28 |
VSWR Return Loss
| Frequency(MHz) | 820 | 890 | 960 | 1710 | 1850 | 2170 | 2300 | 2500 | 2690 |
| Efficiency | 27.23 | 42.28 | 26.29 | 66.53 | 68.74 | 75.74 | 73.56 | 64.41 | 60.56 |
| Gain .dBi | -3.14 | -1.33 | -4.38 | 3.1 | 2.77 | 2.87 | 3.28 | 2.65 | 2.13 |
