External 5G Antenna indoor,Iot,820-960MHz/1710-2700MHz,3300-6G,SMA-J,F01201000208

5G外置天线

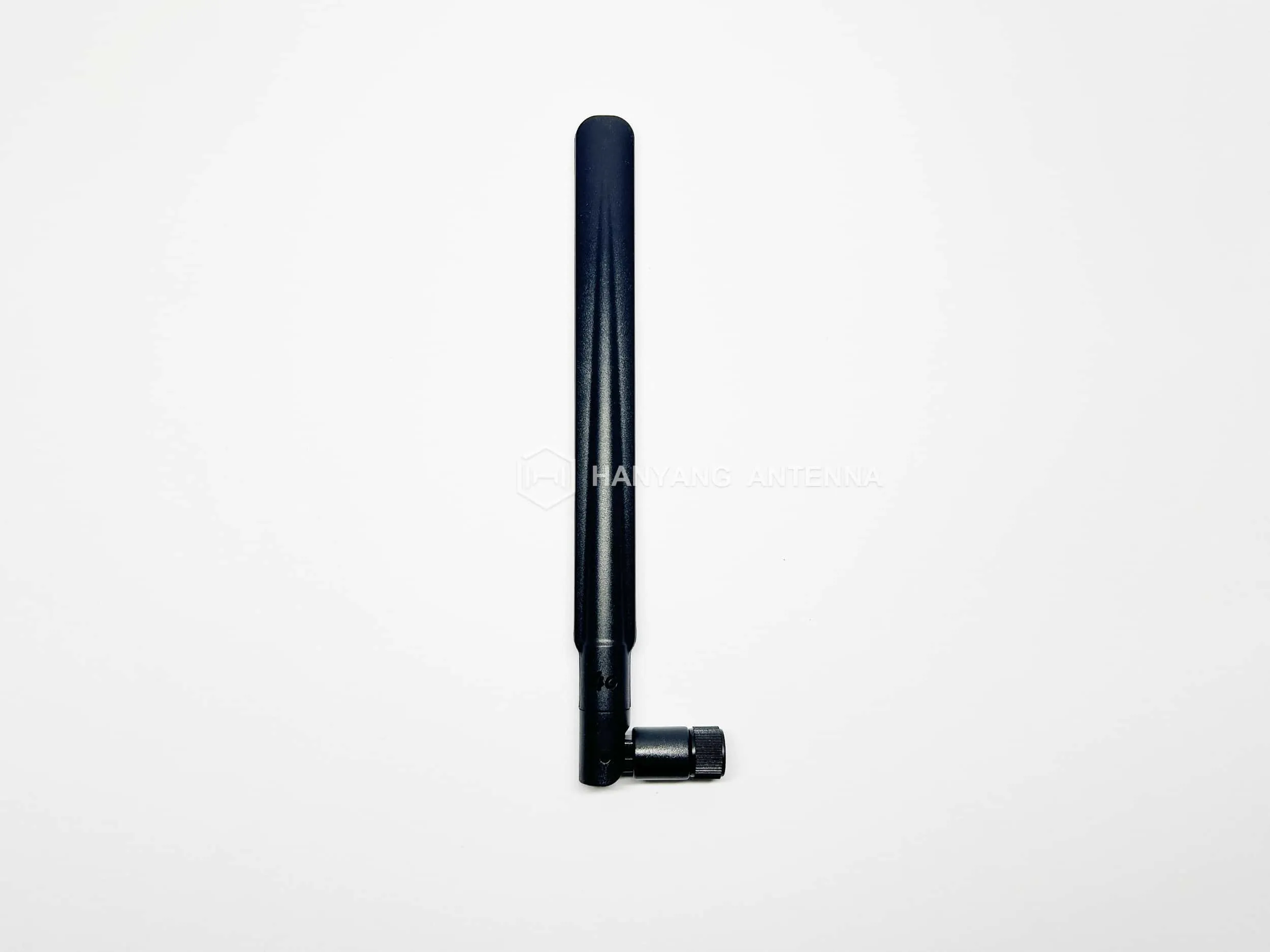

IMG_8495-1

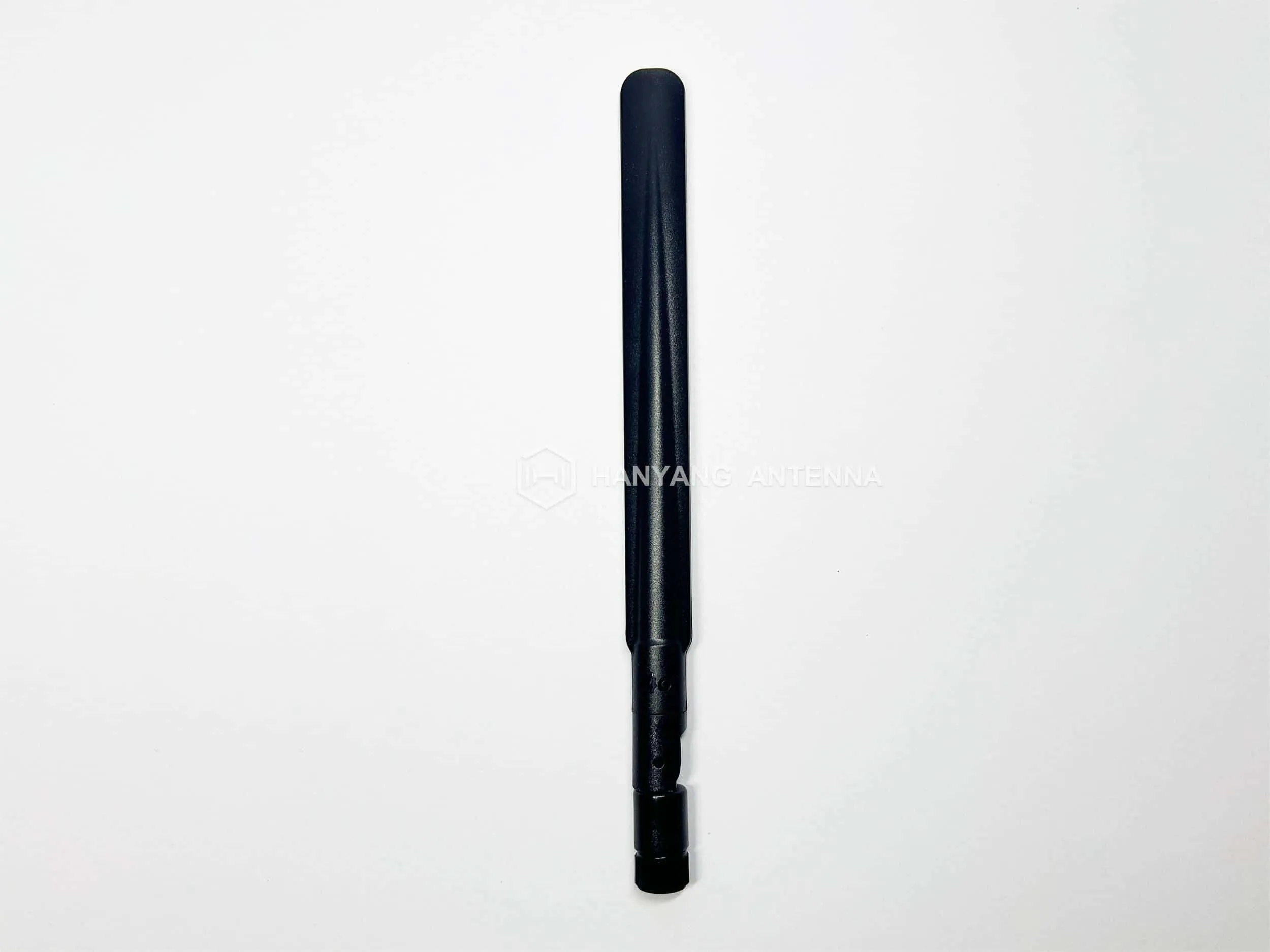

IMG_8497-1
IMG_8495-1
IMG_8497-1

External 5G Antenna indoor,Iot,820-960MHz/1710-2700MHz,3300-6G,SMA-J,F01201000208

频率范围:820-960MHz/1710-2700MHz 3300-6G
尺寸:∅ 169*16*13 mm
驻波比:≦3.0
连接器型:SMA-J
增益:≧3dBi
外壳材料:ABS
阻抗:50Ω
外壳颜色:黑色
极化方式:线极化
工作温度:-40 ˚C- +85 ˚C

Passive Antenna Parameters
Return loss

Frequency Point(MHZ)7009601710217023002690330037005000
Return loss-8.5-19.23-13.51-15.37-11.69-12.36-12.37-14.4710.91
VSWR(dBi)2.171.371.511.421.781.651.631.461.8


Return loss


Return loss


VSWR

 VSWR


Gain and Efficiency
Frequency (MHz)700960171019902170230025702690330040005000
Efficiency (%)30.0533.8832.6548.0757.0864.738.6151.9540.1746.938.43
Gain (dBi)-0.18-0.941.290.061.460.690.280.780.71.81.06




Gain and Efficiency


Gain and Efficiency


Antenna  Radiation Pattern

Antenna  Radiation Pattern
